Hikvision DS-2CE76D0T-ITPF 2 MP Indoor Fixed Turret Camera

(0) 0 Reviews 0 Orders 0 Wish listed

Product Code: 105801

Key Features

Model: DS-2CE76D0T-ITPF
Resolution: 2 MP, FHD (1920 x1080)
2.8 mm Fixed Focal lens
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
EXIR 2.0 Smart IR, up to 20 m IR distance

৳1,200.00 ~~৳1,500.00~~

Quantity :

Quantity:

Total price :

(Tax : )

Overview
Reviews

Specification

General
Dimensions	Φ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
Weight	Approx. 140.5 g (0.31 lb.)
Pan/Tilt/Rotation	Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Power Supply	12 VDC ± 25%
Power Consumption	Max. 2.7 W
Camera
Image Sensor	2 MP CMOS
Electronic Shutter Speed	PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Minimum Illumination	0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
IR Distance	20 M
Lens
Lens Type	Fixed Camera Focal Lens
Focal Length	2.8 mm fixed focal lens
Video
Resolution	1920 × 1080 resolution
Frame Rate	TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
Video Output	Video OutputSwitchable TVI/AHD/CVI/CVBS
Day/Night	ICR
BLC Mode	Yes
Noise Reduction	2D DNR
Interface
Audio Interface	Audio over coaxial cable, built-in mic
Warranty
Warranty	01 year warranty

Description

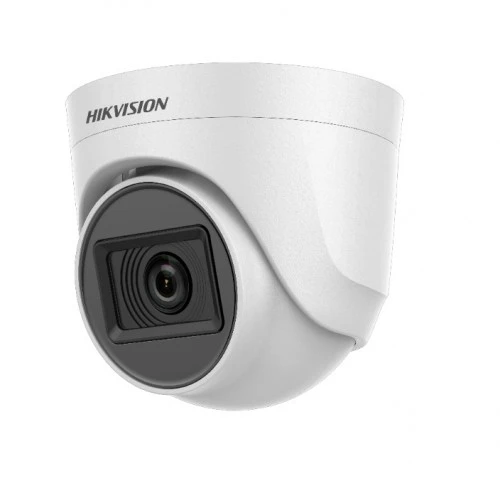

Hikvision DS-2CE76D0T-ITPF 2 MP Indoor Fixed Turret Camera

Hikvision DS-2CE76D0T-ITPF is a 2 MP Indoor Fixed Turret Diome shaped Security Camera. The Image Sensor used is a 2 MP CMOS with a PAL/NTSC signal system. The supported Resolution is 1920 X 1080 Pixels with a frame rate of TVI: 1080P@30fps, 1080P@25fps; CVI: 1080P@30fps, 1080P@25fps; AHD: 1080P@30fps, 1080P@25fps. The Minimum illumination is 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR. As for the Shutter Time, the readings are PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s; Lens 2.8 mm, 3.6 mm, 6 mm fixed lens. For the Field of View, The readings are 2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°. It supports an M12 Lens Mount. It also has an ICR sensor for Day & Night cycling with a Digital WDR. The Angle Adjustment Pan readings are 0° to 360°, Tilt 0° to 75°, Rotation: 0° to 360°. The supported Modes include STD/HIGH-SAT with AGC, Day/Night Mode, Auto/Color/BW (Black and White), White Balance Auto/Manual, AE (Auto Exposure) Mode DWDR/BLC/HLC/Global, 2D DNR Noise Reduction, For function, it has Brightness, Sharpness, Smart IR Interface. The Infra-Red Range is Up to 20 m. The Video Output Switchable is in 4 modes they are TVI/AHD/CVI/CVBS. The General operating Conditions are -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing). For the Power Supply, it is 12 VDC ± 25% with a Power Consumption of a Maximum of 2.2 Watt, Hikvision DS-2CE76D0T-ITPF 2 MP Indoor Fixed Turret Camera offers a 1-year warranty.
