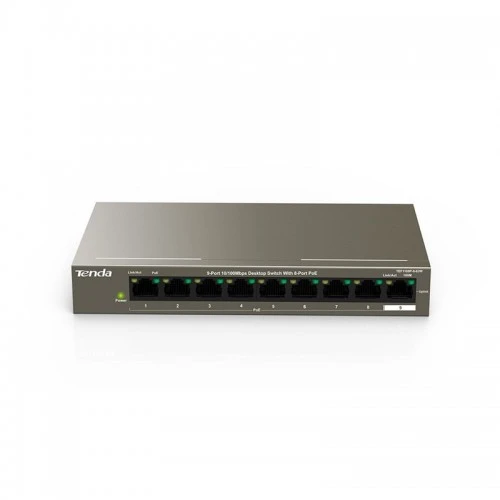

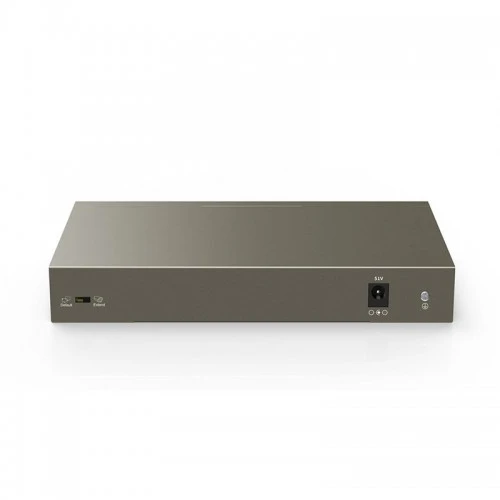

Tenda TEF1110P-8-102W 8 Port Gigabit Desktop Switch With 8-Port PoE

(0) 0 Reviews 0 Orders 0 Wish listed

Product Code: 129204

Key Features

Model: TEF1110P-8-102W
PoE+ and Dual Gigabit Uplink
6KV lighting protection PoE switch
Up to 250 meters long transmission
Lead security transmission power

৳5,900.00 ~~৳6,200.00~~

Quantity :

Quantity:

Total price :

(Tax : )

Overview
Reviews

Specification

Main Feature
Port	8-Port
Network Standard	IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE802.3ab、IEEE 802.3af、IEEE 802.3at
Access Method	2 x 10/100/1000Base-T RJ45 Port(Data)
Advanced Functions	Lightning Protection: 6KV Wire-speed forwarding: Support Indicator: Link/Act, PoE Status, Power, 1000M
Transmission Method	Wired
Data Transmission Rate	8 x 10/100 Mbps 2 x 10/100/1000 Mbps
MAC Address Table	16K MAC
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Hardware Features
Power Supply	Port 1 to Port 8 support standard IEEE802.3at/af power( maximum power for each port is 30W)，PoE power type is end-span(1245+, 3678- line pair) in full configuration：<102W PoE Max Power Supply：99W
Dimensions (L x W x H)	177.5mm x 104mm x 26mm
Manufacture Warranty
Warranty	1 Year

Description

Tenda TEF1110P-8-102W 8 Port Gigabit Desktop Switch With 8-Port PoE

TEF1110P-8-102W has the network extension technology. Based on the original twisted pair, it can support up to 250 meters long distance transmission, breaking the hundred meters transfer limit. With 6KV lightning protection, it is the real monitoring private switch. Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. It provides a maximum power supply of 30W to each port and 99W to the whole device. Meanwhile, it provides dual gigabit uplink port to meet the needs of more equipment cascading and access. Ports 1-8 support IEEE 802.3at and IEEE 802.3af PoE standard. Machine PoE maximum output power of 99W, single-port maximum output power of 30W. The two gigabit uplink ports are capable for cascade connection of more devices. Due to the complex monitoring environment, when making cabling and networking, it is usual to encounter the problem of inadequate network transmission distance, the distance of each camera terminal to the monitoring center is different, some are only a few meters, some are hundred metres, while others are more than kilometers. Tenda TEF12 series PoE monitoring switches, exclusive patent network extension technology, use the common existing twisted pair, can support 250 meters data transmission, break the transmission limit of the existing twisted pair only for one hundred meters ; Provide gigabit linked SFP port, can meet the demand of transmission to a few tens of kilometers. In real monitoring project, cameras are often installed outdoor or in a higher position, which also increases the probability of lightning shock toward the cameras and PoE switches . Therefore, some of the equipments may be damaged and even the whole local area network (LAN) may be paralyzed.Tenda TEF11 series switches have professional lightning protection design â€“ 6kV port and power supply thunder prevents. These two protection design can effectively inhibit the lightning current from the network cable and power supply, which is equivalent to add a security Walls to the entire network monitoring system. And the test standards are far higher than the requirements of the state CCC. In the thunderstorms, the monitoring network can also provide stable and reliable services to the monitoring network and ensure the normal transmission of the images.
